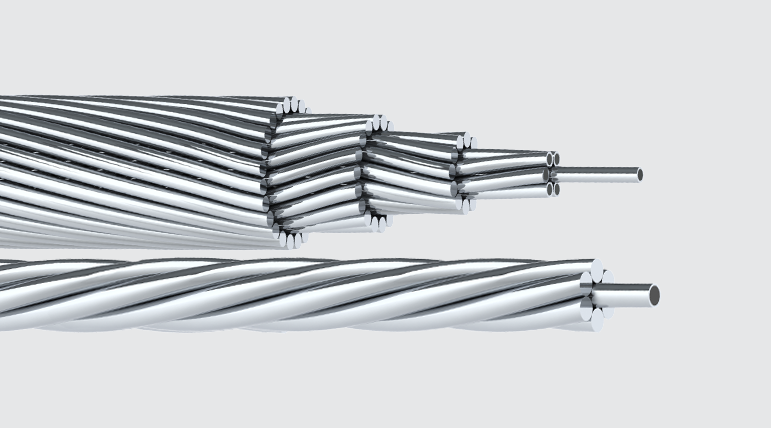

ICAL-CAA/RA - Condutores de Alumínio com Alma de Aço Revestido de Alumínio

Indicados para a transmissão de energia em linhas aéreas urbanas e rurais, o cabo de alumínio CAA/RA é um condutor de alumínio liga 1350 (têmpera H19) encordoado (classe 2), concêntrico com alma de aço revestido de alumínio - ALUMOSTEEL, o que garante maior desempenho mecânico se comparado aos cabos de alumínio nu e maior resistência à corrosão se comparados à cabos com alma de aço zincado.

Normas: ABNT NBR-10841: Cabos de alumínio reforçados por fios de aço revestidos de alumínio para linhas aéreas - Especificação.

Tabela Técnica

Especificações técnicas dos nossos produtos

Código INTELLICódigo InternacionalSeção (AWG/MCM)ÁreaFormaçãoDiâmetro Nominal do Cabo (mm)Ficha técnica
Al (mm²)Aço (mm²)Total (mm²)Al (fios/Ømm)Aço (fios/Ømm)
ICAL-101,8-CAA/RA-PETRELPetrel101,851,61030,10081,71012 / 2,347 / 2,3411,70Visualizar
ICAL-134,6-CAA/RA-LEGHORNLeghorn134,668,20039,780107,98012 x 2,697 x 2,6913,45Visualizar
ical-134,6-CAA/RA-LEGHORNLeghorn134,668,20039,780107,98012 / 2,697 / 2,6913,45Visualizar
ICAL-176,9-CAA/RA-DOTTORELDottorel176,989,41052,150141,56012 x 3,087 x 3,0815,40Visualizar
ICAL-4-/CAA/RA-SWANSwan421,1803,53024,7106 x 2,121 x 2,126,36Visualizar
ICAL-2-CAA/RA-SPARROWSparrow233,5905,60039,1906 x 2,671 x 2,678,01Visualizar
ICAL-1-CAA/RA-ROBINRobin142,4107,07049,4806 x 3,001 x 3,009,00Visualizar
ICAL-1/0-CAA/RA-RAVENRaven1/053,5208,92062,4406 x 3,371 x 3,3710,11Visualizar
ICAL-2/0-CAA/RA-QUAILQuail2/067,33011,22078,5506 x 3,781 x 3,7811,34Visualizar
ICAL-3/0-CAA/RA-PIGEONPigeon3/085,12014,19099,3106 x 4,251 x 4,2512,75Visualizar
ICAL-4/0-CAA/RA-PENGUINPenguin4/0107,22017,870125,0906 x 4,771 x 4,7714,31Visualizar
ICAL-336,4-CAA/RA-MERLINMerlin336,4170,2209,460179,68018 x 3,471 x 3,4717,45Visualizar
ICAL-336,4-CAA/RA-LINNETLinnet336,4170,55027,830198,38026 x 2,897 x 2,2518,31Visualizar
ICAL-336,4-CAA/RA-ORIOLEOriole336,4170,50039,780210,28030 x 2,697 x 2,6918,83Visualizar
ICAL-397,5-CAA/RA-IBISIbis397,5201,34032,730234,07026 x 3,147 x 2,4419,88Visualizar
ICAL-397,5-CAA/RA-LARKLark397,5200,90046,880247,78030 x 2,927 x 2,9220,44Visualizar
ICAL-477,0-CAA/RA-HAWKHank477241,65039,490281,14026 x 3,447 x 2,6821,80Visualizar
ICAL-477,0-CAA/RA-HENHen477241,27056,300297,57030 x 3,207 x 3,2022,40Visualizar
ICAL-556,5-CAA/RA-DOVEDove556,5282,59045,920328,51026 x 3,727 x 2,8923,55Visualizar
ICAL-605,0-CAA/RA-SQUABSquab605305,80049,800355,60026 x 3,877 x 3,0124,54Visualizar
ICAL-795,0-CAA/RA-TERNTern795403,77027,830431,60045 x 3,387 x 2,2527,03Visualizar
ICAL-795,0-CAA/RA-CONDORCondor795402,33052,150454,48054 x 3,087 x 3,0827,74Visualizar
ICAL-795-CAA/RA-DRAKEDrake795402,84065,510468,35026 x 4,447 x 3,4528,11Visualizar
ICAL-900,0-CAA/RA-RUDDYRuddy900455,50031,670487,17045 x 3,597 x 2,4028,74Visualizar
ICAL-954,0-CAA/RA-RAILRail954483,84033,540517,38045 x 3,707 x 2,4729,61Visualizar
ICAL-954,0-CAA/RA-CARDINALCardinal954484,53062,810547,34054 x 3,387 x 3,3830,42Visualizar
ICAL-1192,5-CAA/RA-GRACKLEGrackle1192,5602,79076,890679,68054 x 3,7719,2733,99Visualizar
ICAL-1590,0-CAA/RA-LAPWINGLapwing1590807,53055,600863,13045 x 4,787 x 3,1838,22Visualizar
ICAL-1590-0-CAA/RA-FALCONFalcon1590806,230102,430908,66054 x 4,3619 x 2,6239,26Visualizar
