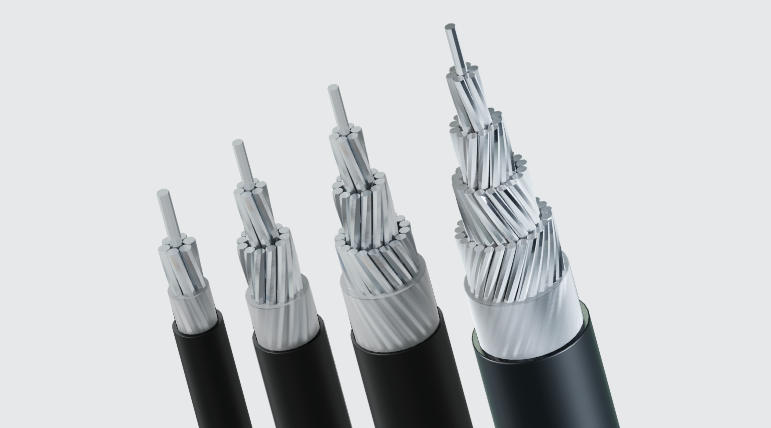

ICALi-XP - Insulated Aluminium Cable with XLPE/PVC
Suitable to transmitting energy with solar farms, the aluminium cable insulated with XLPE/PVC has many applications and can be used in aerial or underground systems.
Its external insulation has high mechanical resistance, allowing the conductor to be directly installed underground. It is also resistant to UV rays what results in longer lifespan when used in aerial installations. The cable ICALi-XP is manufactured with aluminium alloy 1350, compacted, class 2. It has an insulation made with cross-linked polyethylene and covered by polyvinil chloride (PVC) type ST2 with flame retardant properties.
Technical Chart
Technical specifications of our products
| INTELLI Code | Physical Parameters | Datasheet | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Formation | Nominal diameter of wires (mm) | Nominal Diameter of Cable (mm) | Diameter With Insulation (mm) | External Diameter (mm) | Conductor Nominal Cross Section (mm²) | Nominal Weight (kg/km) | Insulation Thickness (mm) | Thickness of Protective Layer (mm) | ||
| ICALi-XP-35 | 7 | 2,50 | 7,20 | 9,00 | 11,20 | 35 | 171,00 | - | - | View |
| ICALi-XP-50 | 7 | 3,00 | 8,30 | 10,30 | 12,70 | 50 | 225,00 | - | - | View |
| ICALi-XP-70 | 19 | 2,12 | 9,80 | 12,00 | 14,40 | 70 | 287,00 | - | - | View |
| ICALi-XP-95 | 19 | 2,53 | 11,60 | 13,80 | 16,40 | 95 | 384,00 | - | - | View |
| ICALi-XP-120 | 19 | 2,83 | 13,00 | 15,40 | 18,00 | 120 | 476,00 | - | - | View |
| ICALi-XP-150 | 19 | 3,20 | 14,30 | 17,10 | 19,90 | 150 | 586,00 | - | - | View |
| ICALi-XP-185 | 37 | 2,53 | 16,00 | 19,20 | 22,00 | 185 | 700,00 | - | - | View |
| ICALi-XP-240 | 37 | 2,85 | 18,00 | 21,40 | 24,40 | 240 | 917,00 | - | - | View |
| ICALi-XP-300 | 37 | 3,20 | 20,50 | 24,10 | 27,30 | 300 | 1120,00 | - | - | View |
| ICALi-XP-400 | 61 | 2,89 | 23,50 | 27,50 | 30,90 | 400 | 1463,00 | - | - | View |
| ICALi-XP-500 | 61 | 3,23 | 26,80 | 31,20 | 34,80 | 500 | 1837,00 | - | - | View |
| ICALi-XP-630 | 61 | 3,63 | 29,80 | 34,60 | 38,60 | 630 | 2292,00 | - | - | View |
