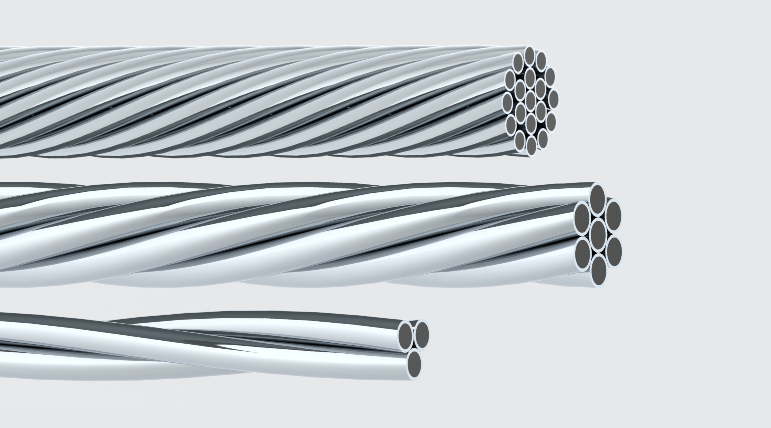

CAS - ALUMOSTEEL Wire Ropes
Made of aluminum-clad steel conductors, ALUMOSTEEL stranded conductor offers a technological solution for stay in power distribution and transmission lines, messenger and neutral for spacer power distribution lines (protected compact), messenger for telephony, rural electrification and lightning cable.
In relation to hot dip galvanized steel, ALUMOSTEEL stranded conductor has greater resistance to corrosion, protective aluminum layer in microns greater than a class 2 or B zinc plating, higher conductivity (13% IACS versus 8% IACS), less weight per kilometer (on average 8%), equivalent mechanical resistance, price per kilo equivalent and the same fittings.
Technical Chart
Technical specifications of our products
Diameter (inches) | Características da Cordoalha | Minimum Braking Load | Datasheet | ||||
---|---|---|---|---|---|---|---|
Nominal Diameter (mm) | Qty. Of Wires | Diameter of Wires (mm) | SM (daN) | HS (daN) | EHS (daN) | ||
3/16 | 4,76 | 3 | 2,21 | 950 | 1430 | 1900 | View |
1/4 | 6,35 | 7 | 2,03 | 1580 | 2400 | 3350 | View |
5/16 | 7,94 | 7 | 2,64 | 2700 | 4000 | 5600 | View |
3/8 | 9,52 | 7 | 3,05 | 3500 | 5400 | 7220 | View |
1/2 | 12,70 | 7 | 4,19 | 6050 | 9400 | 12210 | View |
1/2 | 12,70 | 19 | 2,54 | 6350 | 9550 | 13340 | View |
5/8 | 15,87 | 19 | 3,18 | 9050 | 14100 | 20180 | View |
3/4 | 19,05 | 19 | 3,81 | 13090 | 20400 | 26470 | View |
