GPAL - Aluminum Parallel Groove Clamp

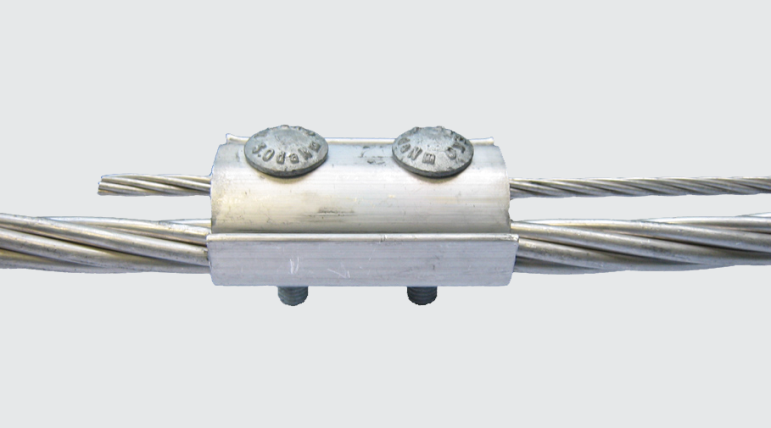

Purpose: Parallel connections cable to cable. Suitable for aluminum to aluminum and aluminum to copper connections.

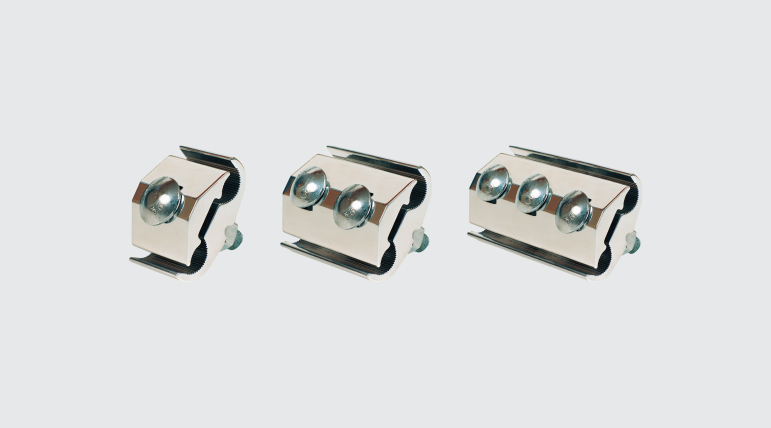

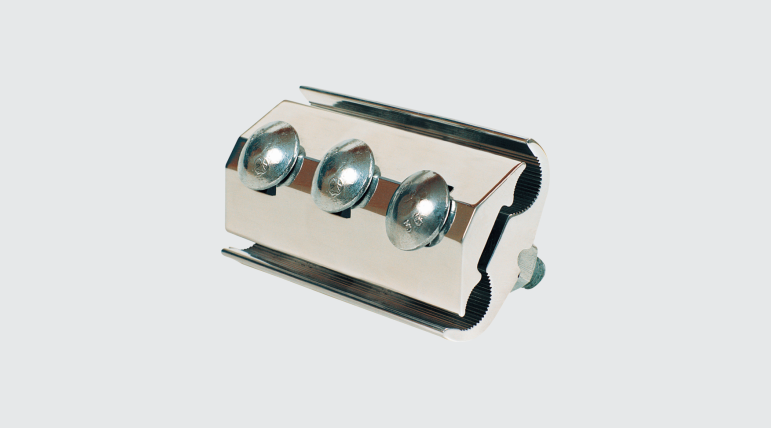

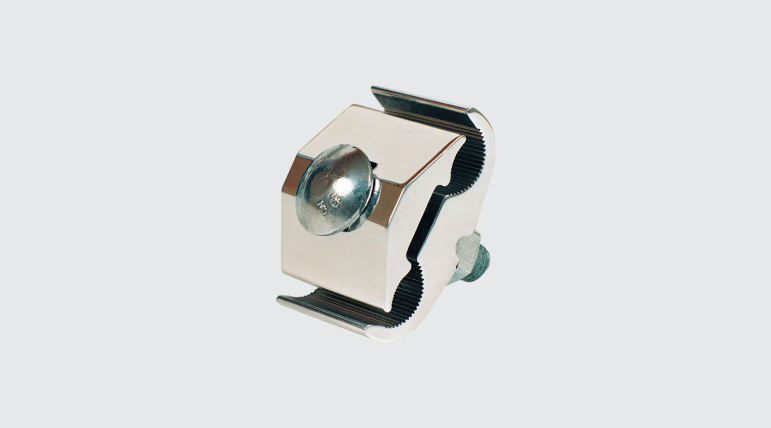

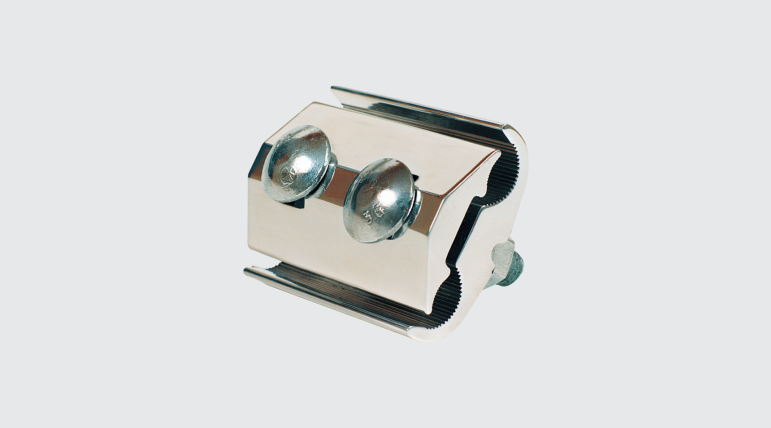

Characteristics: Tightening connection. High electrical conductivity and corrosion resistance. Allows bimetallic connections. Available with one, two or three screws.
Application: Power distribution networks.
Material: Extruded aluminum alloy and fittings in fire galvanized steel.
Application Tool: Box or open-ended wrench.
Technical Chart
Technical specifications of our products
INTELLI Code | Conductors | Datasheet | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Run | Tap | ||||||||||
Cu/Al | ACSR/AW | Diameter (mm) | Cu/Al | ACSR/AW | Diameter (mm) | ||||||
mm131 | AWG/MCM | mm131 | AWG/MCM | mm131 | AWG/MCM | mm131 | AWG/MCM | ||||
GPAL-44-1* | 10 - 70 | fio 10 - 2/0 | - | 6 - 1/0 | 2,59 - 10,60 | 10 - 70 | fio 10 - 2/0 | - | 6 - 1/0 | 2,59 - 10,60 | View |
GPAL-44-2* | 10 - 70 | fio 10 - 2/0 | - | 6 - 1/0 | 2,59 - 10,60 | 10 - 70 | fio 10 - 2/0 | - | 6 - 1/0 | 2,59 - 10,60 | View |
GPAL-60-1 | 50 - 120 | 1/0 - 4/0 | 50 - 120 | 1/0 - 4/0 | 9,36 - 14,31 | 10 - 50 | fio 8 - 1/0 | 16 - 50 | 6 - 1/0 | 3,26 - 10,11 | View |
GPAL-60-2 | 50 - 120 | 1/0 - 4/0 | 50 - 120 | 1/0 - 4/0 | 9,36 - 14,31 | 10 - 50 | fio 8 - 1/0 | 16 - 50 | 6 - 1/0 | 3,26 - 10,11 | View |
GPAL-80-1 | 50 - 185 | 1/0 - 397,5 | 50 - 185 | 1/0 - 336,4 | 9,36 - 18,30 | fio 16 - 70 | fio 6 - 2/0 | - | 6 - 1/0 | 4,11 - 10,60 | View |
GPAL-80-2 | 50 - 185 | 1/0 - 397,5 | 50 - 185 | 1/0 - 336,4 | 9,36 - 18,30 | fio 16 - 70 | fio 6 - 2/0 | - | 6 - 1/0 | 4,11 - 10,60 | View |
GPAL-80-P1 | 50 - 240 | 1/0 - 397,5 | 50 - 240 | 1/0 - 397,5 | 9,36 - 20,44 | 50 - 240 | 1/0 - 397,5 | 50 - 240 | 1/0 - 397,5 | 9,36 - 20,44 | View |
GPAL-80-P2 | 50 - 240 | 1/0 - 397,5 | 50 - 240 | 1/0 - 397,5 | 9,36 - 20,44 | 50 - 240 | 1/0 - 397,5 | 50 - 240 | 1/0 - 397,5 | 9,36 - 20,44 | View |
GPAL-80-P3 | 50 - 240 | 1/0 - 397,5 | 50 - 240 | 1/0 - 397,5 | 9,36 - 20,44 | 50 - 240 | 1/0 - 397,5 | 50 - 240 | 1/0 - 397,5 | 9,36 - 20,44 | View |
