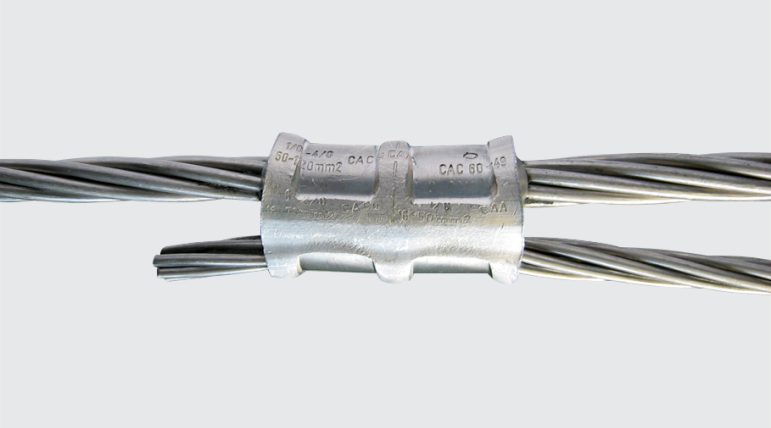

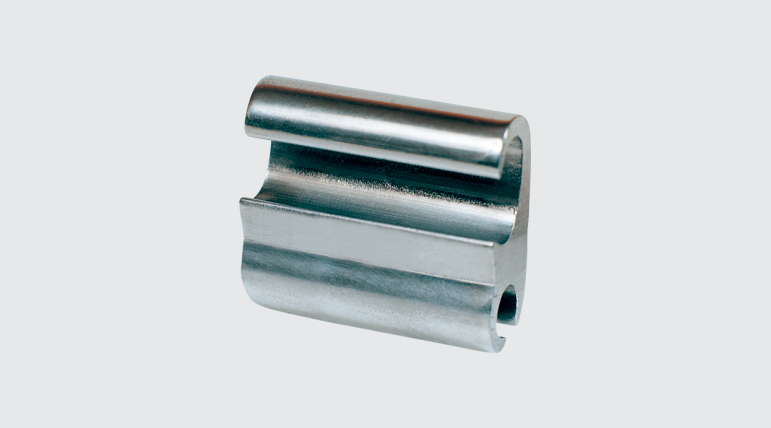

CAC - Aluminum Compression Connector
Purpose: To aluminum CA, CAA or copper cables tap connector. Suitable for aluminum-aluminum and aluminum-copper connections.
Characteristics: Compression connection. High electrical conductivity and corrosion resistance. Connection keeps the conductors separate to minimize the effects of galvanic corrosion, enabling a bimetallic connection.
Application: Power distribution lines.
Material: Extruded aluminum, Supplied with antioxide compound INTELTROX.
Technical Chart
Technical specifications of our products
INTELLI Code | Conductors | Application Tool | Datasheet | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Run | Tap | AT-61 | AY-96 / CY-97 | ||||||||
AAC/Cu (AWG/MCM) | ACSR/AW (AWG/MCM) | Diameter (mm) | AAC/Cu (AWG/MCM) | ACSR/AW (AWG/MCM) | Diameter (mm) | Die | Compressions | Die | Compressions | ||
CAC- 38 a 24 | 6 - 2 | 6 - 4 | 4,6 - 7,4 | Fio 14 - 8 | - | 1,6 - 3,7 | IW-BG | 2 | IU-BG | 1 | View |
CAC-40 a 40 | 4 - 1 | 6 - 2 | 5,1 - 8,1 | Fio 6 - 1 | 6 - 2 | 4,1 - 8,3 | - | - | IU-D3 | 2 | View |
CAC-49 a 24 | Fio 1 - 2/0 | 2 - 2/0 | 7,3 - 11,3 | Fio 14 - 8 | - | 1,6 - 3,7 | IW-O | 2 | IU-O | 1 | View |
CAC-60 a 38 | 1/0 - 4/0 | 1/0 - 4/0 | 9,3 - 14,3 | Fio 6 - 1/0 | 6 - 2 | 4,1 - 9,3 | - | - | IU-H | 2 | View |
CAC-60 a 49 | 1/0 - 4/0 | 1/0 - 4/0 | 9,3 - 14,3 | Fio 6 - 2/0 | 6 - 1/0 | 4,1 - 10/6 | - | - | IU-H | 2 | View |
