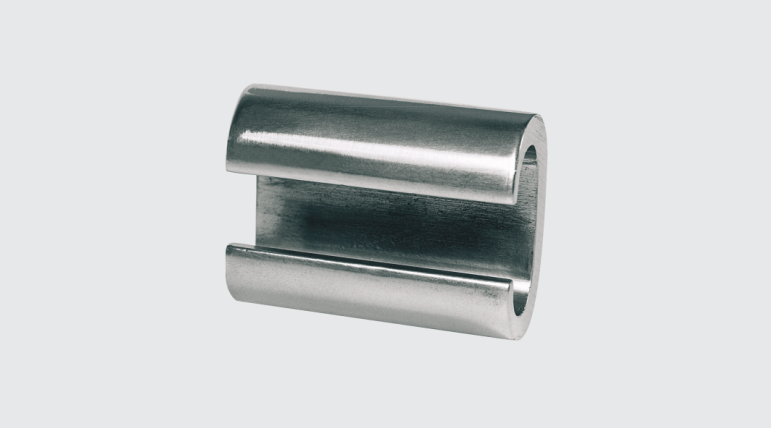

CAL - Aluminum Compression Type Connector

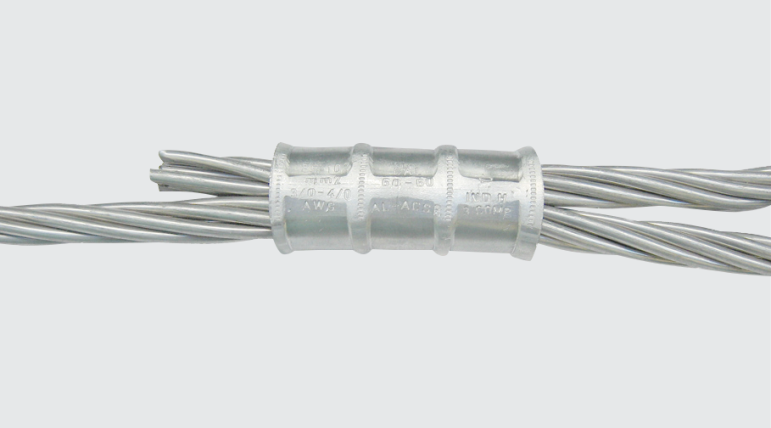

Purpose: Aluminum CA or CAA cable tap. Suitable foraluminum-aluminum connections.
Characteristics: Compression connection. High electrical conductivity and resistance to corrosion.
Application: Power distribution lines.
Material: Extruded aluminum, Supplied with antioxide compound INTELTROX.
Technical Chart
Technical specifications of our products
| INTELLI Code | Conductors | Application Tool | Datasheet | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Run | Tap | AT-61 | AY-96 / CY-97 | ||||||||
| AAC (AWG/MCM) | ACSR/AW (AWG/MCM) | Diameter (mm) | AAC (AWG/MCM) | ACSR/AW (AWG/MCM) | Diameter (mm) | Die | Compressions | Die | Compressions | ||
| CAL-32 a 32 | 4 | 6 | 5,1 - 5,9 | 8 - 4 | 6 | 3,7 - 5,9 | IW-BG | 2 | IU-BG | 2 | View |
| CAL-38 a 38 | 2 | 4 - 2 | 6,3 - 8,0 | 6 - 2 | 6 - 2 | 4,6 - 8,0 | IW-C | 4 | IU-C | 2 | View |
| CAL-44 a 38 | 1/0 | 1/0 | 9,3 - 10,1 | 6 - 2 | 6 - 2 | 4,6 - 8,0 | IW-C | 6 | IU-C | 3 | View |
| CAL-44 a 44 | 1/0 - 2/0 | 1/0 | 9,3 - 10,5 | 1/0 - 2/0 | 1/0 | 9,3 - 10,5 | IW-Q | 6 | IU-Q | 2 | View |
| CAL-60 a 44 | 3/0 - 4/0 | 3/0 - 4/0 | 11,8 - 14,3 | 1/0 | 1/0 | 9,3 - 10,1 | - | - | IU-H | 3 | View |
| CAL-60 a 60 | 3/0 -4/0 | 3/0 | 11,8 - 13,3 | 3/0 - 4/0 | 3/0 | 11,8 - 13,3 | - | - | IU-H | 3 | View |
