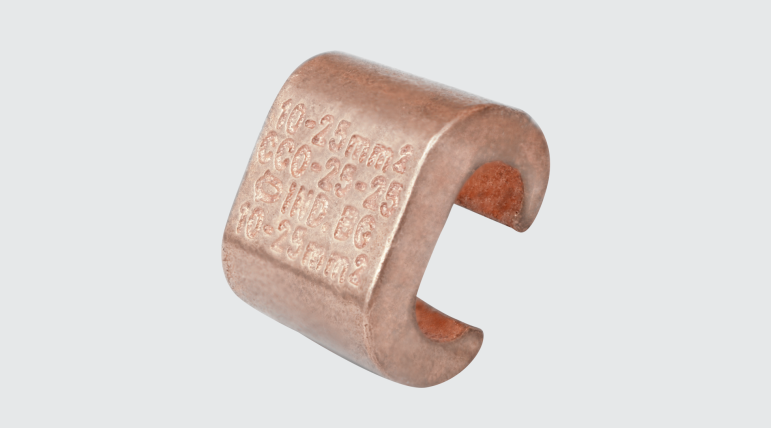

CCO - Compression Grounding Connector

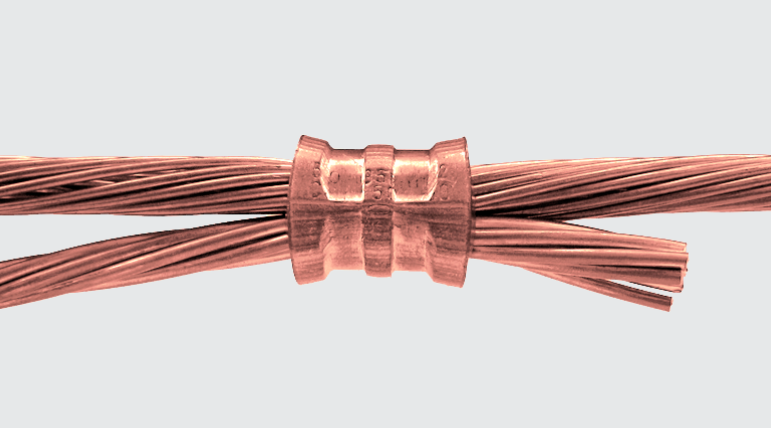

Purpose: Cable to cable splice or branch. Suitable for COPPERSTEEL and copper cables.

Characteristics: Compression connection. High resistance to corrosion. It can be buried directly into the ground or concrete.

Application: Grounding systems in general (power distribution systems, grounding grids, residential, building and industrial grounding), grounding in telecommunication networks, grounding in substations).

Material: Copper alloy, supplied with antioxide compound INTELTROX-Cu.

Technical Chart

Technical specifications of our products

INTELLI CodeConductorApplication ToolDatasheet
RunTapMechanicalHydraulicCompressions
AWG/MCMmm131AWG/MCMmm131PlierDiePlierDie
CCO-25-258 - 410 - 258 - 410 - 25AT-60IW-BGAY-96 / CY-96IU-BG1View
CCO-50-506 - 1/016 - 506 - 1/016 - 50--AY-96 / CY-96IU-C1View
