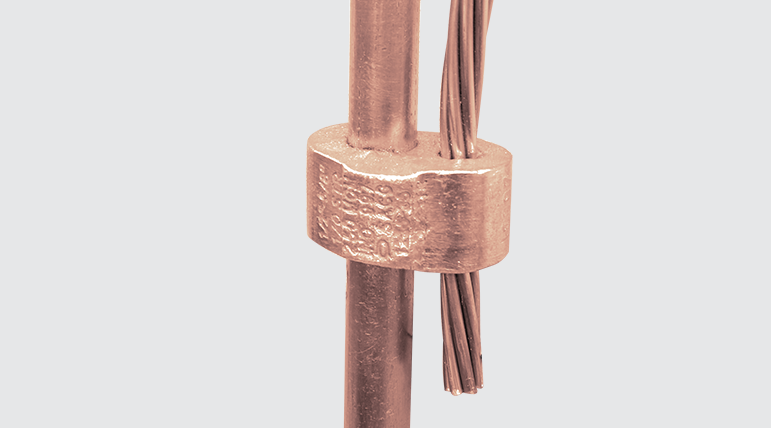

SACG - Cable to Ground Rod Compression Grounding System
Purpose: Connection between ground rod to cable and cable to cable. Suitable for COPPERSTEEL and copper wires and cables.
Characteristics: Compression connection. High resistance to corrosion. It can be buried directly into the ground or concrete.
Application: Grounding systems in general (power distribution systems, grounding grids, residential, building and industrial grounding), grounding in telecommunication networks, grounding in substations).
Material: Copper alloy, supplied with antioxide compound INTELTROX-Cu.
Technical Chart
Technical specifications of our products
| INTELLI Code | Conductors / Ground Rod | Die Index | Application Tool | Compressions | Datasheet | |||
|---|---|---|---|---|---|---|---|---|
| Run | Tap | |||||||
| Ground Rod | Conductor | AWG/MCM | mm131 | |||||
| SACG-1258-35 | 1/2" - 5/8" | 1/0 STR-250 MCM | 4 - 2 | 16 - 35 | IU-997 | AY-96/CY-96 | 1 | View |
| SACG-1258-70 | 1/2" - 5/8" | 1/0 STR - 250 MCM | 1/0 - 2/0 | 50 - 70 | IU-997 | AY-96/CY-96 | 1 | View |
| SACG-1258-150 | 1/2" - 5/8" | 1/0 STR - 250 MCM | 3/0 - 250 | 95 - 150 | IU-997 | AY-96/CY-96 | 1 | View |
| SACG-5834-35 | 5/8" - 3/4" | 250 MCM - 500 MCM | 4 - 2 | 16 - 35 | IU-998 | AY-96/CY-96 | 1 | View |
| SACG-5834-70 | 5/8" - 3/4" | 250 MCM - 500 MCM | 1/0 - 2/0 | 50 - 70 | IU-998 | AY-96/CY-96 | 1 | View |
| SACG-5834-150 | 5/8" - 3/4" | 250 MCM - 500 MCM | 3/0 - 250 | 95 - 150 | IU-998 | AY-96/CY-96 | 1 | View |
