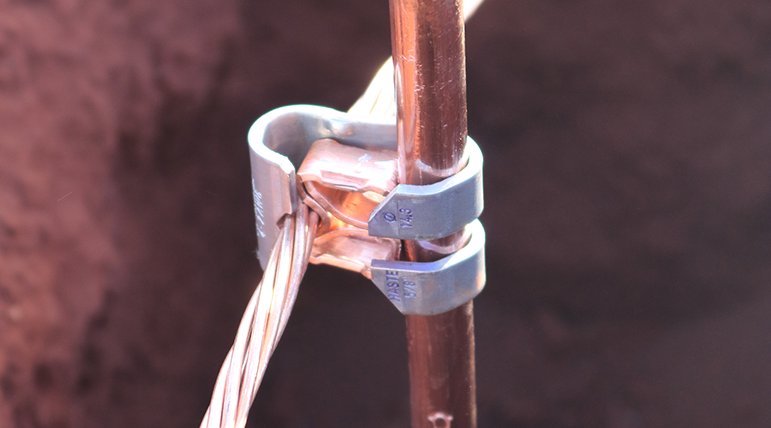

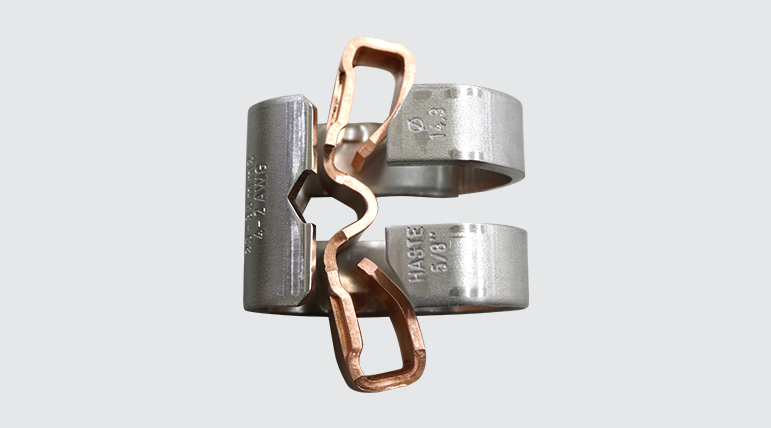

Purpose: Connection between ground rod to cable. Suitable for COPPERSTEEL or copper cables.

Characteristics: Spring system connection (permanent tightening). High resistance to corrosion. Easy application.

Application: Grounding systems in general (power distribution systems, grounding grids, residential, building and industrial grounding), grounding in telecommunication networks, grounding in substations).

Material: Copper for internal parts and stainless steel for external parts.

Application Tool: Water pump pliers.

Technical Chart

Technical specifications of our products

INTELLI CodeGround Rod DiameterConductor (Cu or CS)Datasheet
AWG/MCMmm131
CAT-58-165/8" (14,3mm)8 - 610 - 16View
CAT-58-355/8" (14,3mm)4 - 225 - 35View
CAT-58-505/8" (14,3mm)1/050View
