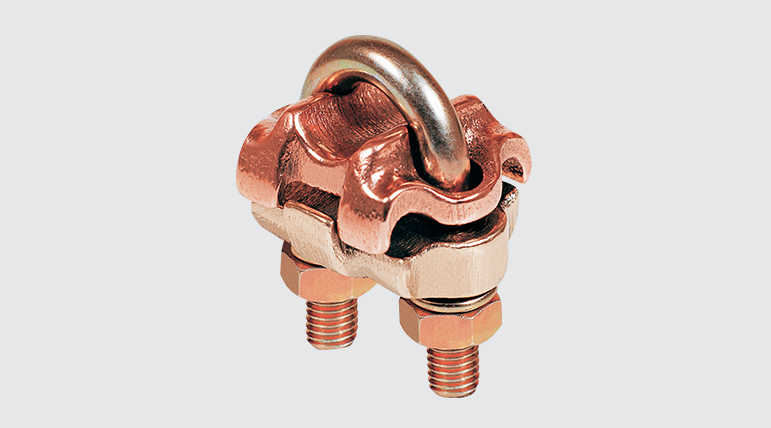

GTDU2C - U-Bolt Grounding Clamp (2 conductors)

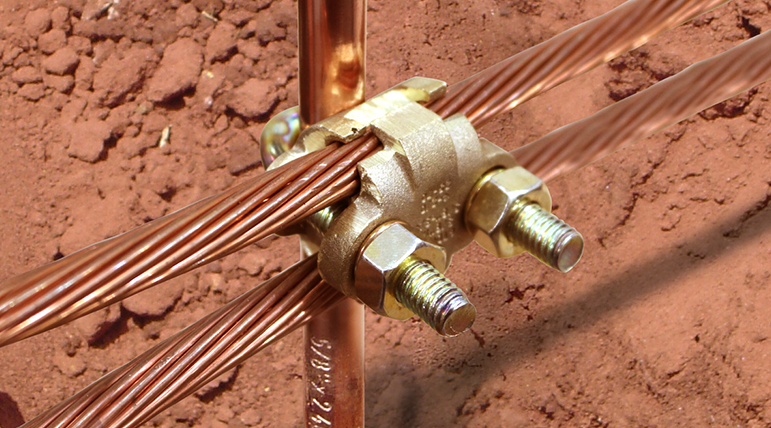

Purpose: Connection between ground rod to cable or IPS tube-cable. Suitable for COPPERSTEEL or copper cables.
Characteristics: Tightening connection. High electrical conductivity and corrosion resistant. It allows you to connect two parallel cables.
Application: Grounding systems in general (power distribution systems, grounding grids, residential, building and industrial grounding, grounding in telecommunication networks, grounding in substations).
Material: Copper alloy clamp, fittings in copper alloy or electrolytic zinc plated steel.
Application Tool: Spanner set or open-ended wrench.
Technical Chart
Technical specifications of our products
| INTELLI Code | Conductor | Ground Rod Nominal Diameter (inches) | IPS Tube | Accessory Material | Datasheet | |
|---|---|---|---|---|---|---|
| AWG/MCM | mm131 | |||||
| GTDU2C-3/8"-IPS-4-2/0 | 4 - 2/0 | 16 - 70 | 5/8" - 3/4" | 3/8" | AÇO ZINCADO | View |
| GTDU2C-3/8"-IPS-2/0-250 | 2/0 - 250 | 70 - 120 | 5/8" - 3/4" | 3/8" | AÇO ZINCADO | View |
| GTDU2C-3/8"-IPS-4-2/0 | 4 - 2/0 | 16 - 70 | 5/8" - 3/4" | 3/8" | LIGA DE COBRE | View |
| GTDU2C-3/8"-IPS-2/0-250 | 2/0 - 250 | 70 - 120 | 5/8" - 3/4" | 3/8" | LIGA DE COBRE | View |
| GTDU2C 1/4" IPS 4-2/0 | 4 - 2/0 | 16 - 70 | 1/2" | 1/4" | View | |
| GTDU2C 3/8" IPS 8-4 | 8 - 4 | 10 - 25 | 5/8" - 3/4" | 1/4" | View | |
| GTDU2C 3/8" IPS 300-500 | 300 - 500 | 150 - 240 | 5/8" - 3/4" | 3/8" | View | |
| GTDU2C 1/2"-3/4" IPS 4-2/0 | 4 - 2/0 | 16 - 70 | 7/8" - 1" | 3/8" | View | |
| GTDU2C 1/2"-3/4" IPS 2/0-250 | 2/0 - 250 | 70 - 120 | 7/8" - 1" | 1/2" - 3/4" | View | |
| GTDU2C 1" IPS 4-2/0 | 4 - 2/0 | 16 - 70 | - | 1/2" - 3/4" | View | |
| GTDU2C 1" IPS 2/0-250 | 2/0 - 250 | 70 - 120 | - | 1/2" - 3/4" | View | |
| GTDU2C 1.1/2" IPS 4-2/0 | 4 - 2/0 | 16 - 70 | - | 1/2" - 3/4" | View | |
| GTDU2C 2" IPS 4-2/0 | 4 - 2/0 | 16 - 70 | - | 1" | View | |
| GTDU2C 2" IPS 2/0-250 | 2/0 - 250 | 70 - 120 | - | 1" | View | |
| GTDU2C 2.1/2" IPS 2/0-250 | 2/0 - 250 | 70 - 120 | - | 1" | View | |
| GTDU2C 3" IPS 8-4 | 8 - 4 | 10 - 25 | - | 1" | View | |
| GTDU2C 3" IPS 2/0-250 | 2/0 - 250 | 70 - 120 | - | 1.1/4" | View | |
| GTDU2C 4" IPS 8-4 | 8 - 4 | 10 - 25 | - | 1.1/2" | View | |
