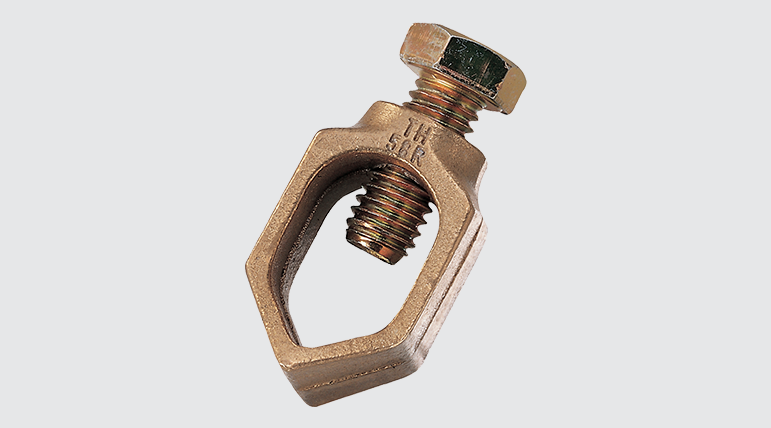

TH / TH-R - Grounding Clamps

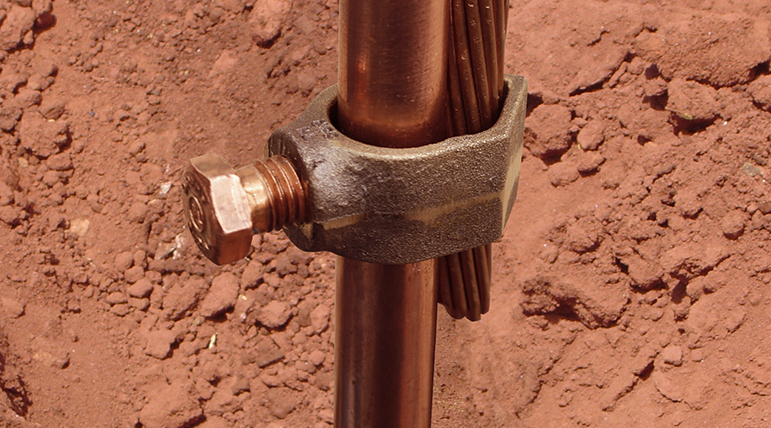

Purpose: Connection between ground rod and cable. Suitable for COPPERSTEEL or copper cables.
Characteristics: Tightening connection. High electrical conductivity and corrosion resistance.
Application: Grounding systems in general (power distribution systems, grounding grids, residential, building and industrial grounding, grounding in telecommunication networks).
Material: Bronze clamp, copper alloy (TH-R) or copper alloy clamp, electrolytic zinc plated steel fittings (TH).
Application Tool: Spanner set or open-ended wrench.
Technical Chart
Technical specifications of our products
| INTELLI Code | Ground Rod Nominal Diameter (inches) | Conductor | Datasheet | |
|---|---|---|---|---|
| AWG/MCM | mm131 | |||
| TH-12-58 | 1/2" - 5/8" | 10 - 1/0 | 6 - 50 | View |
| TH-12-58-R | 1/2" - 5/8" | 8 - 2/0 | 10 - 70 | View |
| TH-58 | 5/8" | 8 - 1/0 | 10 - 50 | View |
| TH-58-R | 5/8" | 8 - 1/0 | 10 - 50 | View |
| TH-34 | 3/4" | 8 - 10 | 10 - 50 | View |
| TH-34-R | 3/4" | 8 - 1/0 | 10 - 50 | View |
| TH-38 | 3/8" | 12 - 8 | 4 - 16 | View |
| TH-1 | 1" | 8 - 1/0 | 10 - 50 | View |
| TH-1-R | 1" | 8 - 1/0 | 10 - 50 | View |
