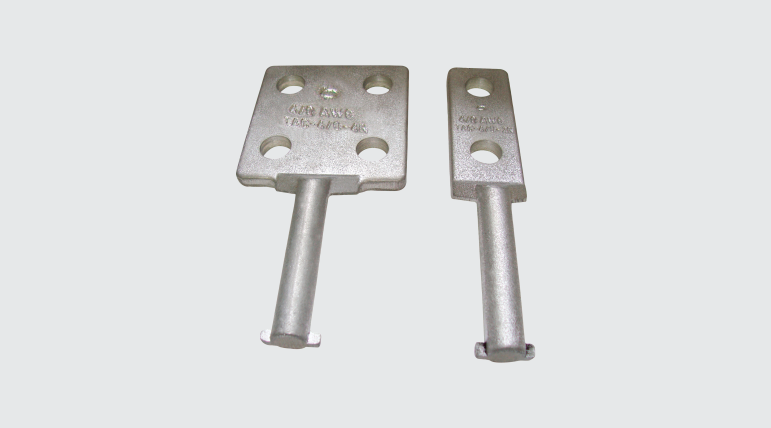

TAC - Adapter Terminals for Wedge Connector

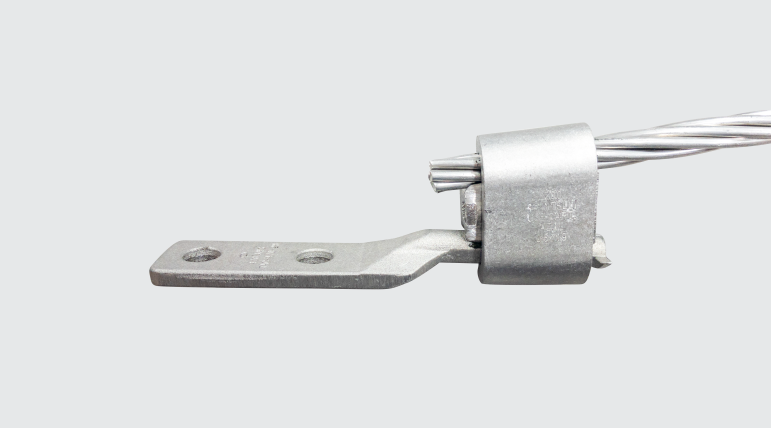

Purpose: Termination on sectioning switches and busbars in conjunction with aluminum wedge connectors.
Characteristics: High electrical conductivity and corrosion resistance. Pad with two or four holes NEMA standard.
Application: Power distribution lines.
Material: Cast aluminum alloy.
Application Tool: Impact tool for wedge connector.
Technical Chart
Technical specifications of our products
INTELLI Code | Terminal (Pin Gauge) | Conductors (AWG/MCM) | Wedge Type Connectors** | Datasheet | |
---|---|---|---|---|---|
AWG/MCM | Ø (mm) | ||||
TAC-4/0-2N | 4/0 | 13,2 | 6 - 4/0 | CADC-20B | CADC-208 | CADC-211 | View |
TAC-336,4-2N | 336,4 | 16,9 | 336,4 | 397,5 | 477 | 556,5 | CADC-401 | CADC-503 | View |
TAC-4/0-4N | 4/0 | 13,2 | 6 - 4/0 | CADC-20B | CADC-208 | CADC-211 | View |
TAC-336,4-4N | 336,4 | 16,9 | 336,4 | 397,5 | 477 | 556,5 | CADC-401* | CADC-503 | View |
