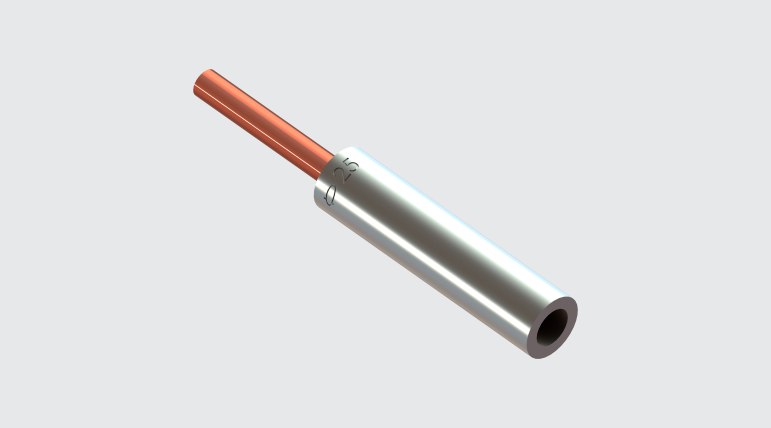

TBB - Bimetallic Terminal for Terminal Block
Purpose: Bimetallic termination cable-strip (aluminum cable to copper block). Connection on terminal block, transformer bushing, circuit breakers.
Characteristics: Compression connection. Its construction (copper pin and aluminum barrel) prevents galvanic corrosion.
Applications: Power distribution lines.
Material: Electrolytic copper pin and extruded aluminum barrel. Supplied with INTELTROX antioxide compound.
Note: For installation in regions of aggressive climate, it is recommended to use thermoset insulation or self-fusing tape in the connection.
Technical Chart
Technical specifications of our products
| INTELLI Code | AAC Conductor | Application Tool | Datasheet | |||
|---|---|---|---|---|---|---|
| AWG/MCM | mm131 | Mechanical Pliers (AT-60 4t) | Hydraulic Pliers (AY-96 / CY-96) | |||
| Die (IW) | Die (IU) | Die (MH) | ||||
| TBB-10-25 | 8 | 10 | 161 | 161 | - | View |
| TBB-16-25 | 6 | 16 | 161 | 161 | - | View |
| TBB-25-30 | 4 | 25 | 162 | 162 | - | View |
| TBB-35-30 | 2 | 35 | 163 | 163 | 163A | View |
| TBB-50-45 | 1/0 | 50 | 243 | 243 | 243A | View |
| TBB-70-45 | 2/0 | 70 | 245 | 245 | 245A | View |
| TBB-95-45 | 3/0 | 95 | 247 | 247 | 247A | View |
| TBB-120-55 | 4/0 | 120 | 249 | 249 | 249A | View |
