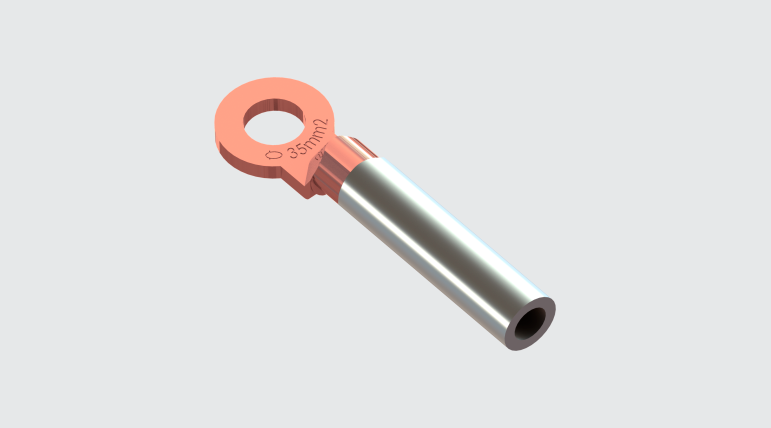

TBTA - Bimetallic Compression Terminal

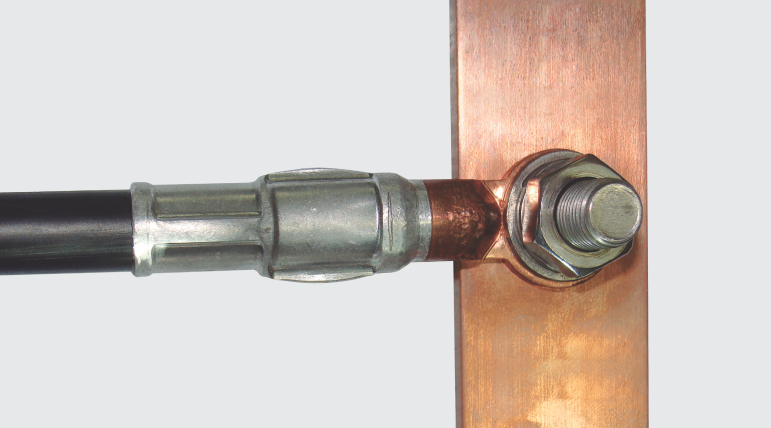

Purpose: Bimetallic cable to busbar termination (aluminum or ALUMOSTEEL cable to copper busbar).
Characteristics: Compression connection. Its construction (copper pad and aluminum barrel) prevents the formation of galvanic corrosion. Pad with one hole.
Applications: Power distribution lines.
Material: Electrolytic copper pad and extruded aluminum barrel. Supplied with antioxide compound INTELTROX.
Note: For installation in regions of aggressive enviroments, it is recommended to use thermoset insulation or self-fusing tape in the connection.
Technical Chart
Technical specifications of our products
| INTELLI Code | AAC Conductor | Application Tool | Datasheet | |||||
|---|---|---|---|---|---|---|---|---|
| AWG/MCM | Compact (mm²) | Mechanical Pliers (AT-60 4t) | Hydraulic Pliers (AY-96 / CY-96) | |||||
| Die (IW) | Nº de Compressões | Die (IU) | Die (MH) | Nº de Compressões | ||||
| TBTA-25-10 | 4 | 25 | 162 | 5 | 162 | 162A | 2 | View |
| TBTA-35-13 | 2 | 25 | 162 | 5 | 162 | 162A | 2 | View |
| TBTA-50-13 | 1/0 | 50 | 243 | 4 | 243 | 243A | 2 | View |
| TBTA-70-13 | 2/0 | 70 | 245 | 4 | 245 | 245A | 2 | View |
| TBTA-95-13 | 3/0 | 95 | 247 | 4 | 247 | 247A | 2 | View |
| TBTA-120-13 | 4/0 | 120 | 249 | 4 | 249 | 249A | 2 | View |
| TBTA-150-13 | 266,8 | 150 | - | - | 251 | - | 3 | View |
| TBTA-185-10 | 336,4 | 185 | - | - | 316 | - | 3 | View |
| TBTA-185-13 | 336,4 | 185 | - | - | 316 | - | 3 | View |
| TBTA-240-10 | 397,5 | 240 | - | - | 316 | - | 3 | View |
| TBTA-240-13 | 397,5 | 240 | - | - | 316 | - | 3 | View |
| TBTA-240-16 | 397,5 | 240 | - | - | 316 | - | 3 | View |
| TBTA-300-10 | 477 | 300 | - | - | 261 | - | 3 | View |
| TBTA-300-13 | 477 | 300 | - | - | 261 | - | 3 | View |
| TBTA-300-16 | 477 | 300 | - | - | 261 | - | 3 | View |
| TBTA-400-10 | 636 | 400 | - | - | SOB CONSULTA | - | - | View |
| TBTA-400-13 | 636 | 400 | - | - | SOB CONSULTA | - | - | View |
| TBTA-400-16 | 636 | 400 | - | - | SOB CONSULTA | - | - | View |
