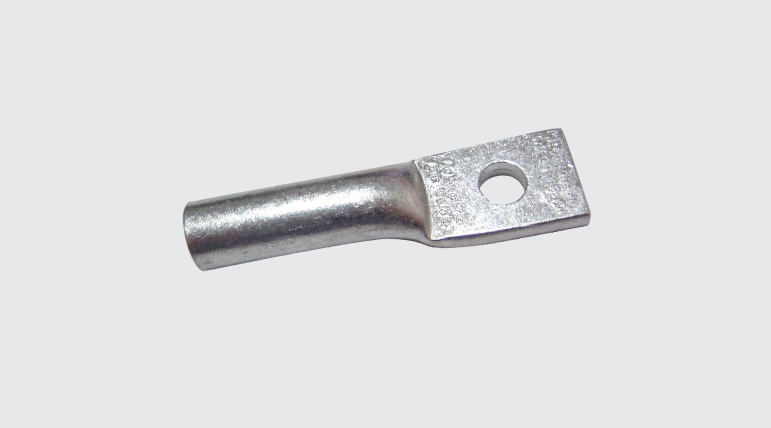

TAL - Extruded Aluminum Terminal (one hole)

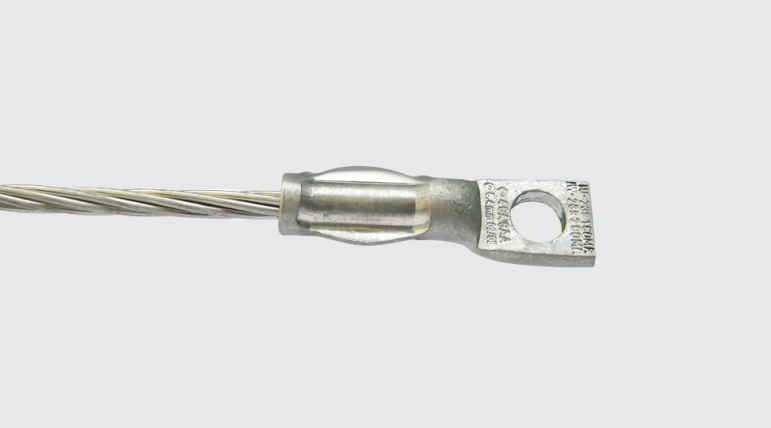

Purpose: Cable to busbar termination for CA or CAA aluminum cables.
Characteristics: Compression connection. High electrical conductivity and resistance to corrosion.
Application: Power distribution lines.
Material: Extruded aluminum. Supplied with antioxide compound INTELTROX.
Technical Chart
Technical specifications of our products
| INTELLI Code | Conductors | Application Tool | Datasheet | |||||
|---|---|---|---|---|---|---|---|---|
| Compact AAC | AWG/MCM | Mechanical Pliers (AT-60 4t) | Hydraulic Pliers (AY-96 / CY-96) | |||||
| CA (aluminium cable) | ACSR/AW | Die | Compressions | Die | Compressions | |||
| TAL-16 | 16 | 6 | 6 | IW-237 | 2 | IU-237 | 1 | View |
| TAL-32 | 25 | 4 | 4 | IW-239 | 2 | IU-239 | 1 | View |
| TAL-38 | 35 | 2 | 2 | IW-239 | 2 | IU-239 | 1 | View |
| TAL-44 | 50 | 1/0 | 1/0 | IW-243 | 2 | IU-243 | 1 | View |
| TAL-49 | 70 | 2/0 | - | IW-243 | 2 | IU-243 | 1 | View |
| TAL-58 | 95 | 3/0 | - | IW-247 | 4 | IU-247 | 2 | View |
| TAL-60 | 120 | 4/0 | 4/0 | IW-249 | 3 | IU-249 | 1 | View |
