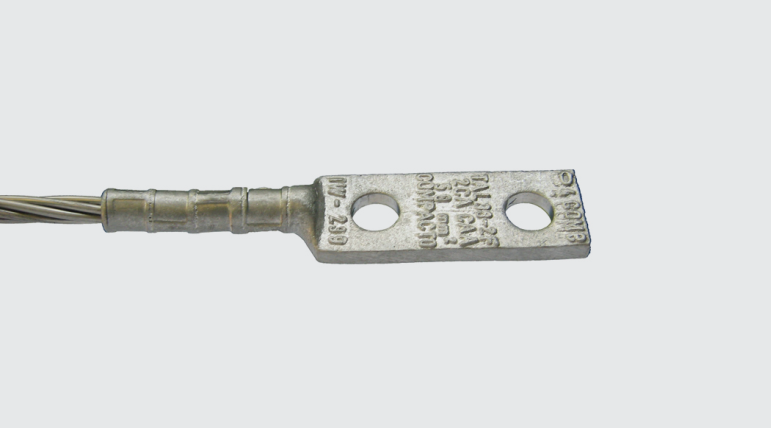

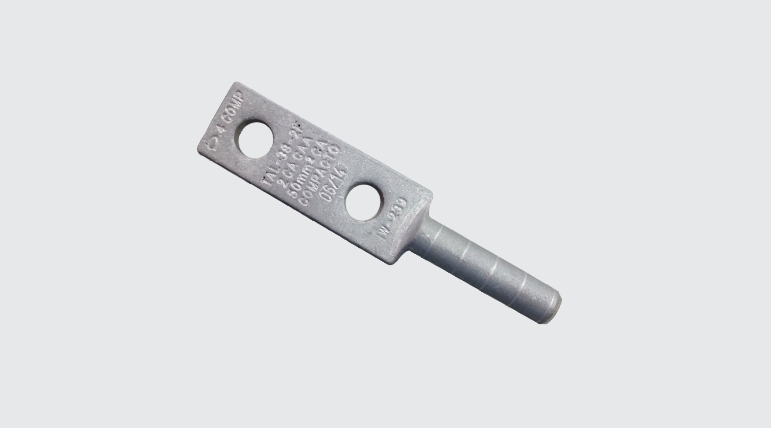

TALF - Cast Aluminum Terminal

Purpose: Cable to busbar termination for CA or CAA aluminum cables.

Characteristics: Compression connection. High electrical conductivity and corrosion resistance. Hole diameter per NEMA standard.

Application: Power distribution lines.

Material: Cast aluminum. Supplied with antioxide compound INTELTROX.

Technical specifications of our products

INTELLI Code	Conductors			Application Tool				Datasheet
	Compact AAC	AWG/MCM		Mechanical Pliers (AT-60 4t)		Hydraulic Pliers (AY-96 / CY-96)
		CA (aluminium cable)	ACSR/AW	Die	Compressions	Die	Compressions
TALF-32-2		25	4	4	IW-237	4	IU-237	2	View
TALF-38-2	35 - 50	2	2	IW-239	4	IU-239	2	View
TALF-44-2	50 - 70	1/0	1/0	IW-243	4	IU-243	2	View
