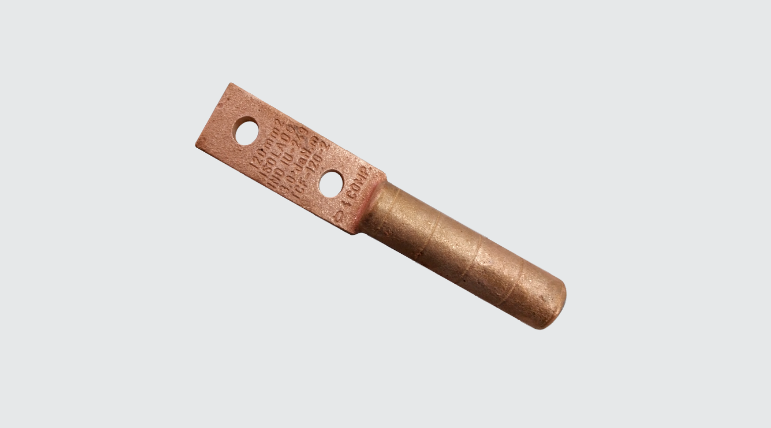

TCF - Cast Copper Terminal

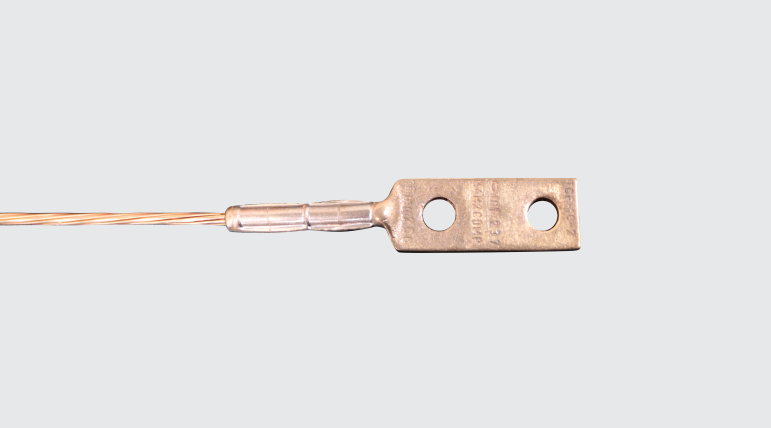

Purpose: Cable to busbar termination for copper cables.
Characteristics: Compression connection. High electrical conductivity and resistance to corrosion. Drilling per NEMA standard.
Application: Power distribution lines.
Material: Copper Alloy.
Finish: No Finishing. Supplied with antioxide compound INTELTROX-Cu.
Technical Chart
Technical specifications of our products
INTELLI Code | Conductors - Cross Section (mm²) | Application Tool | Datasheet | |||
---|---|---|---|---|---|---|
Mechanical Pliers (AT-60 4t) | Hydraulic Pliers (AY-96 / CY-96) | |||||
Die | Compressions | Die | Compressions | |||
TCF-16-2 | 16 | IW-237 | 4 | IU-237 | 2 | View |
TCF-25-2 | 25 | IW-237 | 4 | IU-237 | 2 | View |
TCF-35-2 | 35 | IW-239 | 4 | IU-239 | 2 | View |
TCF-50-2 | 50 | IW-239 | 4 | IU-239 | 2 | View |
TCF-70-2 | 70 | IW-245 | 4 | IU-245 | 2 | View |
TCF-95-2 | 95 | IW-245 | 4 | IU-245 | 2 | View |
