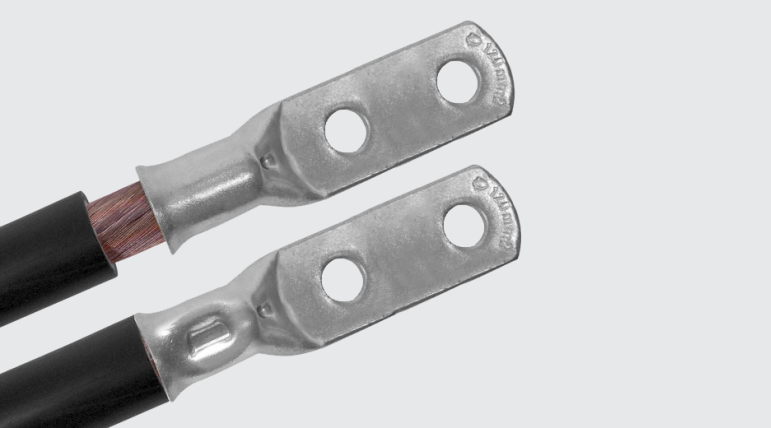

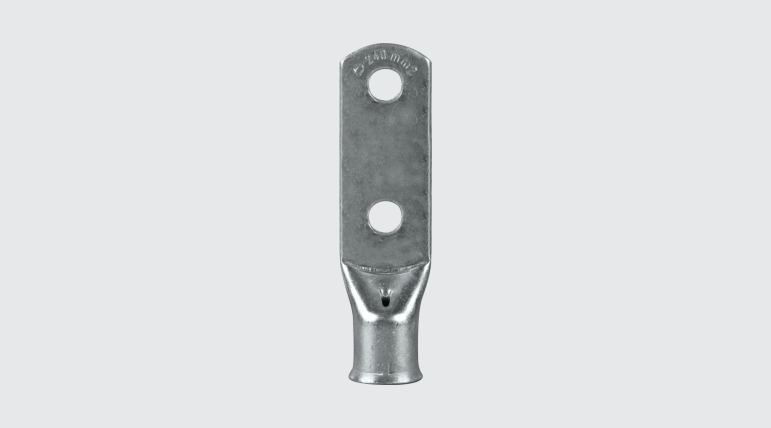

TF-2 - Copper Terminal for Flexible Conductors (two holes / short barrel)
Purpose: Termination of copper conductors.
Characteristics: High electrical conductivity and corrosion resistance. Pad with several hole diameter options and optimum electrical contact. Expanded shape barrel for easy insertion of flexible conductors.
Applications: Electrical panels, circuit breaker connections, motors, machines, busbars, electrical distribution boards, among others.
Material: Electrolytic copper.
Finish: Tin Plated.
Technical Chart
Technical specifications of our products
INTELLI Code | Conductors - Cross Section (mm²) | Current (A) | Application Tool | Datasheet | |||
---|---|---|---|---|---|---|---|
Mechanical Pliers | Hydraulic Pliers (AY-96 / CY-96) | ||||||
Model | Die (AT-60) | Circunferencial Die | Hexagonal Die | ||||
TF-10-2 | 10 | 101 | AT-60/68 | IW-8 | IU-8 | H-8 | View |
TF-16-2 | 16 | 137 | AT-60/68 | IW-5 | IU-5 | H-5 | View |
TF-25-2 | 25 | 182 | AT-60/68 | IW-4 | IU-4 | H-4 | View |
TF-35-2 | 35 | 226 | AT-60/68 | IW-4 | IU-2 | H-2 | View |
TF-50-2 | 50 | 275 | AT-60/68 | IW-1 | IU-25** | H-25 | View |
TF-70-2 | 70 | 353 | AT-60/68 | IW-26 | IU-26 | H-26 | View |
TF-95-2 | 95 | 430 | AT-60/68 | IW-27 | IU-27 | H-27 | View |
TF-120-2 | 120 | 500 | AT-60/68 | IW-29 | IU-29 | H-29 | View |
TF-150-2 | 150 | 577 | - | - | IU-30 | H-30 | View |
TF-185-2 | 185 | 661 | - | - | IU-31 | H-31 | View |
TF-240-2 | 240 | 781 | - | - | IU-34 | H-34 | View |
TF-300-2 | 300 | 902 | - | - | IU-36 | H-36 | View |
TF-400-2 | 400 | 1085 | - | - | IU-40 | H-40 | View |
TF-500-2 | 500 | 1253 | - | - | IU-44 | H-44 | View |
