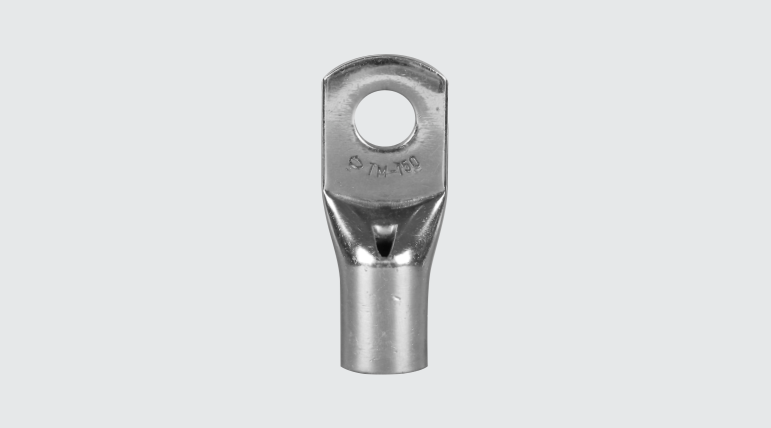

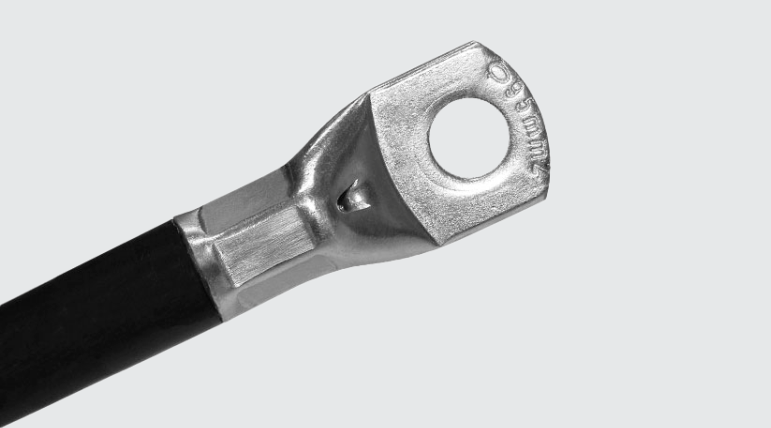

TM - Copper Compression Terminal (one hole / short barrel)
Purpose: Termination of copper conductors.
Characteristics: High electrical conductivity and corrosion resistance. Pad with several hole diameter options and optimum electrical contact.
Applications: Electrical panels, circuit breaker connections, motors, machines, busbars, electrical distribution boards, among others.
Material: Electrolytic copper.
Finish: Tin plated.
Technical Chart
Technical specifications of our products
INTELLI Code | Conductors - Cross Section (mm²) | Current (A) | Application Tool | Datasheet | |||
---|---|---|---|---|---|---|---|
Mechanical Pliers | Hydraulic Pliers (AY-96 / CY-96) | ||||||
Model | Die (AT-60) | Circunferencial Die | Hexagonal Die | ||||
TM-2,5 | 1 - 2,5 | 41 | AT-10 | - | - | - | View |
TM-2,5-6 | 1 - 2,5 | 41 | AT-10 | - | - | - | View |
TM-6 | 4 - 6 | 73 | AT-10 | - | - | - | View |
TM-6-6 | 4 - 6 | 73 | AT-10 | - | - | - | View |
TM-10 | 10 | 101 | AT-60/68 | IW-8 | IU-8 | H-8 | View |
TM-10-6 | 10 | 101 | AT-60/68 | IW-8 | IU-8 | H-8 | View |
TM-10-8 | 10 | 101 | AT-60/68 | IW-8 | IU-8 | H-8 | View |
TM-16 | 16 | 137 | AT-60/68 | IW-5 | IU-5 | H-5 | View |
TM-16-6 | 16 | 137 | AT-60/68 | IW-5 | IU-5 | H-5 | View |
TM-16-8 | 16 | 137 | AT-60/68 | IW-5 | IU-5 | H-5 | View |
TM-25-5 | 25 | 182 | AT-60/68 | IW-4 | IU-4 | H-4 | View |
TM-25 | 25 | 182 | AT-60/68 | IW-4 | IU-4 | H-4 | View |
TM-25-8 | 25 | 182 | AT-60/68 | IW-4 | IU-4 | H-4 | View |
TM-25-10 | 25 | 182 | AT-60/68 | IW-4 | IU-4 | H-4 | View |
TM-35-6 | 35 | 226 | AT-60/68 | IW-4 | IU-2 | H-2 | View |
TM-35 | 35 | 226 | AT60/68 | IW-4 | IU-2 | H-2 | View |
TM-35-10 | 35 | 226 | AT-60/68 | IW-4 | IU-2 | H-2 | View |
TM-50-6 | 50 | 275 | AT-60/68 | IW-1 | IU-25** | H-25 | View |
TM-50-8 | 50 | 275 | AT-60/68 | IW-1 | IU-25** | H-25 | View |
TM-50 | 50 | 275 | AT-60/68 | IW-1 | IU-25** | H-25 | View |
TM-50-13 | 50 | 275 | AT-60/68 | IW-1 | IU-25** | H-25 | View |
TM-70-8 | 70 | 353 | AT-60/68 | IW-26 | IU-26 | H-26 | View |
TM-70 | 70 | 353 | AT-60/68 | IW-26 | IU-26 | H-26 | View |
TM-70-13 | 70 | 353 | AT-60/68 | IW-26 | IU-26 | H-26 | View |
TM-95-8 | 95 | 43,0 | AT-60/68 | IW-27 | IU-27 | H-27 | View |
TM-95 | 95 | 430 | AT-60/68 | IW-27 | IU-27 | H-27 | View |
TM-95-13 | 95 | 430 | AT-60/68 | IW-27 | IU-27 | H-27 | View |
TM-120 | 120 | 500 | AT-60/68 | IW-29 | IU-29 | H-29 | View |
TM-120-13 | 120 | 500 | AT-60/68 | IW-29 | IU-29 | H-29 | View |
TM-150-10 | 150 | 577 | - | - | IU-30 | H-30 | View |
TM-150 | 150 | 577 | - | - | IU-30 | H-30 | View |
TM-150-17 | 150 | 577 | - | - | IU-30 | H-30 | View |
TM-185-10 | 185 | 661 | - | - | IU-31 | H-31 | View |
TM-185 | 185 | 661 | - | - | IU-31 | H-31 | View |
TM-185-17 | 185 | 661 | - | - | IU-31 | H-31 | View |
TM-240-10 | 240 | 781 | - | - | IU-34 | H-34 | View |
TM-240 | 240 | 781 | - | - | IU-34 | H-34 | View |
TM-240-17 | 240 | 781 | - | - | IU-34 | H-34 | View |
TM-300-13 | 300 | 902 | - | - | IU-36 | H-36 | View |
TM-300 | 300 | 902 | - | - | IU-36 | H-36 | View |
TM-400-13 | 400 | 1085 | - | - | IU-40 | H-40 | View |
TM-400 | 400 | 1085 | - | - | IU-40 | H-40 | View |
TM-500 | 500 | 1253 | - | - | IU-44 | H-44 | View |
TM-630 | 630 | 1454 | - | - | - | - | View |
TM-630-20 | 630 | 1454 | - | - | - | - | View |
