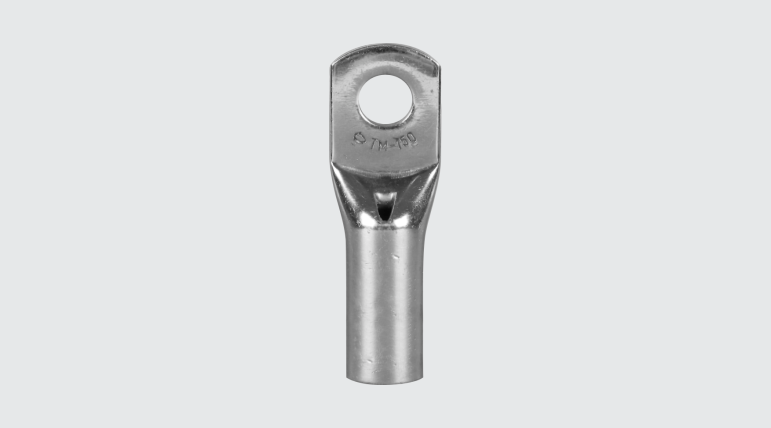

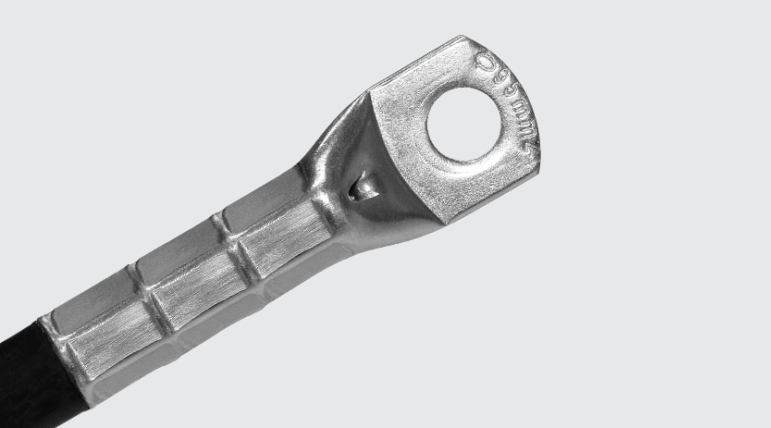

TM-L - Copper Compression Terminal (one hole / long barrel)

Purpose: Termination of copper conductors.

Characteristics: High electrical conductivity and corrosion resistance. Pad with several hole diameter options and optimum electrical contact.

Applications: Electrical panels, circuit breaker connections, motors, machines, busbars, electrical distribution boards, among others.

Material: Electrolytic copper.

Finish: Tin plated.

Technical specifications of our products

INTELLI Code	Conductors - Cross Section (mm²)	Current (A)	Application Tool				Datasheet
			Mechanical Pliers		Hydraulic Pliers (AY-96 / CY-96)
			Model	Die (AT-60)	Circunferencial Die	Hexagonal Die
TM-10-L	10	101	AT-60/68	IW-8	IU-8	H-8	View
TM-10-L-6	10	101	AT-60/68	IW-8	IU-8	H-8	View
TM-16-L	16	137	AT-60/68	IW-5	IU-5	H-5	View
TM-16-L-8	16	137	AT-60/68	IW-5	IU-5	H-5	View
TM-25-L	25	182	AT-60/68	IW-4	IU-4	H-4	View
TM-25-L-10	25	182	AT-60/68	IW-4	IU-4	H-4	View
TM-35-L	35	226	AT-60/68	IW-4	IU-2	H-2	View
TM-35-L-10	35	226	AT-60/68	IW-4	IU-2	H-2	View
TM-50-L	50	275	AT-60/68	IW-1	IU-25**	H-25	View
TM-50-L-10	50	275	AT-60/68	IW-1	IU-25**	H-25	View
TM-50-L-13	50	275	AT-60/68	IW-1	IU-25**	H-25	View
TM-70-L-8	70	353	AT-60/68	IW-26	IU-26	H-26	View
TM-70-L-10	70	58,0	AT-60/68	IW-26	IU-26	H-26	View
TM-70-L	70	353	AT-60/68	IW-26	IU-26	H-26	View
TM-95-L-10	95	430	AT-60/68	IW-27	IU-27	H-27	View
TM-95-L	95	430	AT-60/68	IW-27	IU-27	H-27	View
TM-120-L-10	120	500	AT-60/68	IW-29	IU-29	H-29	View
TM-120-L	120	500	AT-60/68	IW-29	IU-29	H-29	View
TM-150-L	150	577	-	-	IU-30	H-30	View
TM-150-L-17	150	577	-	-	IU-30	H-30	View
TM-185-L	185	661	-	-	IU-31	H-31	View
TM-185-L-17	185	661	-	-	IU-31	H-31	View
TM-240-L	240	781	-	-	IU-34	H-34	View
TM-240-L-17	240	781	-	-	IU-34	H-34	View
TM--300-L	300	902	-	-	IU-36	H-36	View
TM-300-L-17	300	902	-	-	IU-36	H-36	View
TM-400-L	400	1085	-	-	IU-40	H-40	View
TM-400-L-17	400	1085	-	-	IU-40	H-40	View
TM-500-L	500	1253	-	-	IU-44	H-44	View
TM-500-L-17	500	1253	-	-	IU-44	H-44	View
TM-130-L	630	1454	-	-	-	-	View
TM-630-L-20	630	1454	-	-	-	-	View
