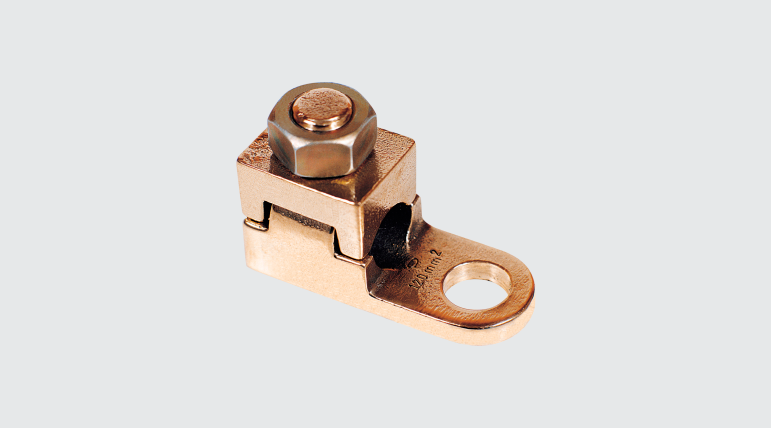

TA - Tightening Terminal (symmetric series)

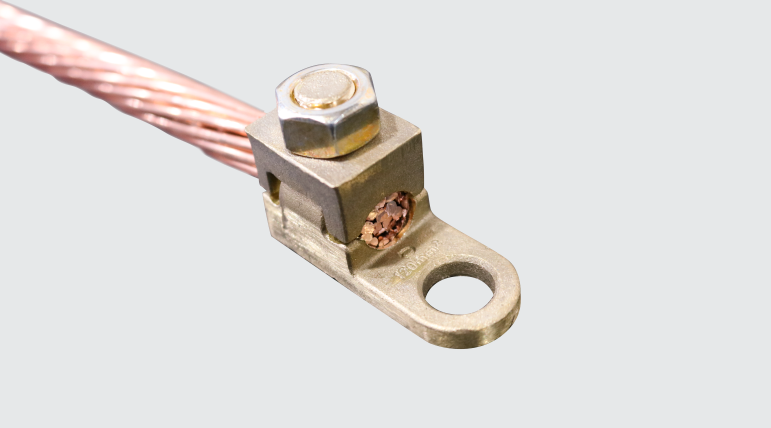

Purpose: Cable-busbar termination for copper cable (classes - 1/2/3). Connection to busbars, switchboards, electrical panels and others.
Characteristics: Mechanical pressure connection. Pad with one hole.
Application: Electrical installations in general (residential, building, industrial).
Material: Copper alloy terminal, electrolytic zinc plated steel nut.
Application Tool: Star or open-ended wrench.
Technical Chart
Technical specifications of our products
INTELLI Code | Conductor | Screw | Datasheet | ||
---|---|---|---|---|---|
mm131 | AWG/MCM | Inches | Metric | ||
TA-6 | 6 | 10 | 3/16 | M5 | View |
TA-10 | 10 | 8 | 3/16 | M5 | View |
TA-16 | 16 | 6 | 1/4 | M6 | View |
TA-25 | 25 | 4 | 1/4 | M6 | View |
TA-35 | 35 | 2 | 1/4 | M6 | View |
TA-50 | 50 | 1/0 | 5/16 | M8 | View |
TA-70 | 70 | 2/0 | 5/16 | M8 | View |
TA-95 | 95 | 3/0 | 3/8 | M10 | View |
TA-120 | 120 | 4/0 | 1/2 | M12 | View |
TA-150 | 150 | 250 | 1/2 | M12 | View |
TA-185 | 185 | 300 | 1/2 | M12 | View |
TA-240 | 240 | 500 | 9/16 | M14 | View |
TA-300 | 300 | 600 | 9/16 | M14 | View |
TA-400 | 400 | 800 | 5/8 | M16 | View |
TA-500 | 500 | 1000 | 5/8 | M16 | View |
