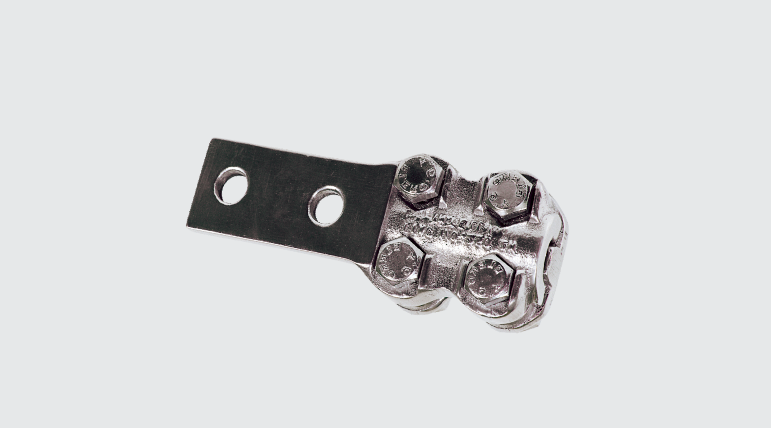

TTAC - Aluminum Cable-Busbar Terminal (straight connection)

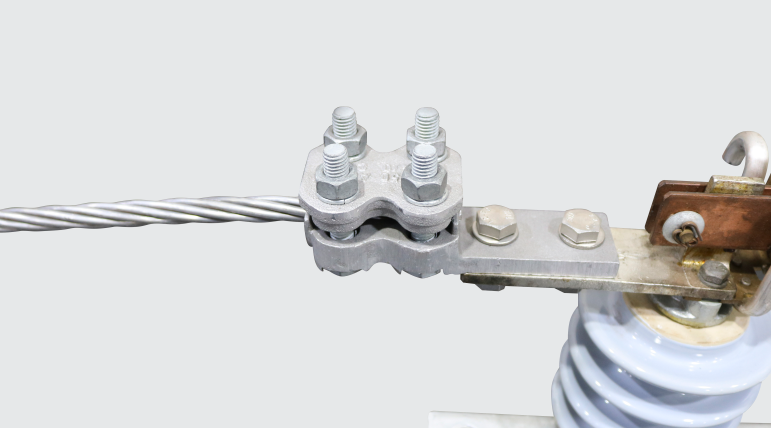

Purpose: Cable to busbar termination for CA or CAA aluminum cables.
Characteristics: Mechanical connection. High electrical conductivity. Pad with two or four NEMA standard holes. There are lugs that lock the head of the screws.
Application: Power distribution lines and substations.
Material: Cast aluminum alloy and hot galvanized steel fittings.
Application Tool: Star or open-ended wrench.
Note: Using of the antioxide compound INTELTROX is recommended.
Technical Chart
Technical specifications of our products
INTELLI Code | Conductors | Screw | Datasheet | |
---|---|---|---|---|
AAC (AWG/MCM) | ACSR/AW (AWG) | |||
TTAC-4-1/0-2N | 4 - 1/0 | 4 - 1/0 | M12 | View |
TTAC-1/0-250-2N | 1/0 - 250 | 1/0 - 4/0 | M12 | View |
TTAC-1/0-250-4N | 1/0 - 250 | 1/0 - 4/0 | M12 | View |
TTAC-250-400-2N | 250 - 400 | 4/0 - 397,5 | M12 | View |
TTAC-250-400-4N | 250 - 400 | 4/0 - 397,5 | M12 | View |
TTAC-350-600-2N | 350 - 600 | 336,4 - 477 | M12 | View |
TTAC-350-600-4N | 350 - 600 | 336,4 - 477 | M12 | View |
TTAC-600-900-2N | 600 - 900 | 477 - 795 | M12 | View |
TTAC-600-900-4N | 600 - 900 | 477 - 795 | M12 | View |
