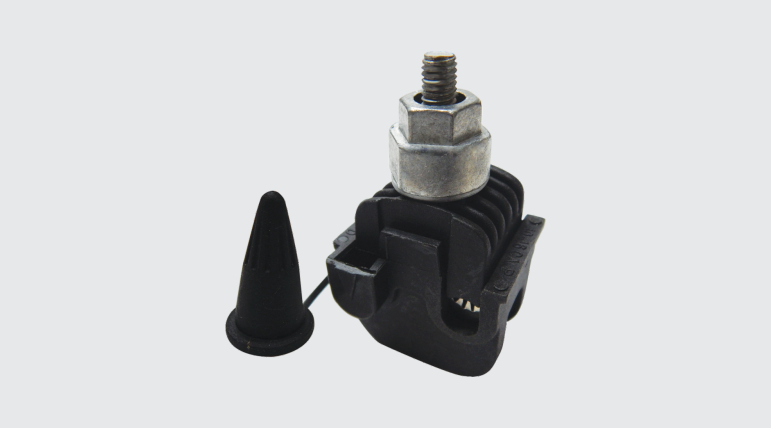

CDPF - Piercing Connector for Flexible Conductors
Purpose: Connection between input branch (Flexible copper cable Class-4/5 - PVC insulation 450 / 750v without cover) and connection branch (multiplexed CA aluminum conductors - XLPE / PE 0.6 / 1kV - phase and neutral (insulated or bare).

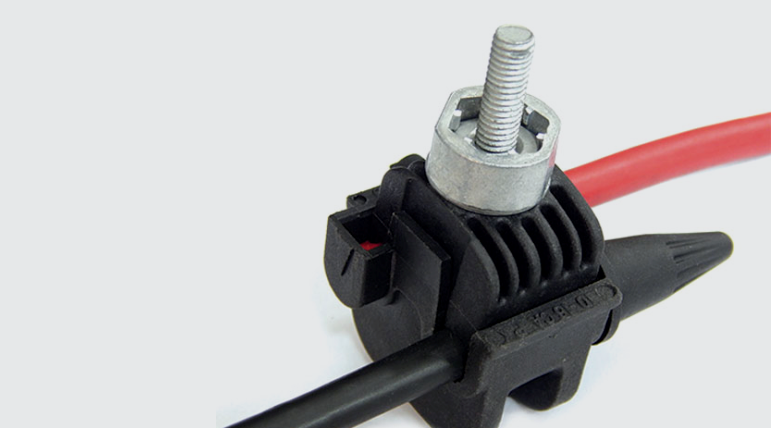

Characteristics: Connection by piercing (no need to strip the insulation from the cable). It has a shear head nut to ensure a perfect connection. It has compensation springs that ensure a constant pression in the connection.
Application: Overhead insulated electricity distribution networks.
Material: Polymer connector resistant to weather and U.V rays. Tin plated copper contacts.
Application Tool: Star or socket wrench.
Technical Chart
Technical specifications of our products
| INTELLI Code | Conductors | Datasheet | |
|---|---|---|---|
| Run - AAC/Cu - Class 2 (mm²) | Tap - Cu - Class 4/5 (mm²) | ||
| CDPF-16-16 | 10 - 16 | 6 - 16 | View |
| CDPF-25-25 | 10 - 25 | 6 - 25 | View |
| CDPF-35-35 | 10 - 35 | 25 - 35 | View |
| CDPF-50-50 | 10 - 50 | 25 - 50 | View |
| CDPF-70-70 | 25 - 70 | 50 - 70 | View |
| CDPF-70-120 | 25 - 70 | 95 - 120 | View |
| CDPF-120-150 | 50 - 120 | 95 - 120 | 120 - 150 | 95 - 120 | View |
| CDPF-120-240 | 50 | 70 - 120 | 185 | 185 - 240 | View |
