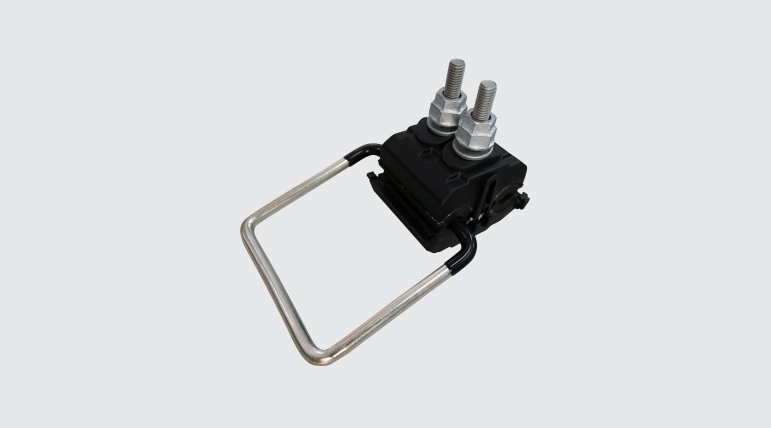

CDPRPE* - Piercing Tap Connector with Stirrup for Protected Network

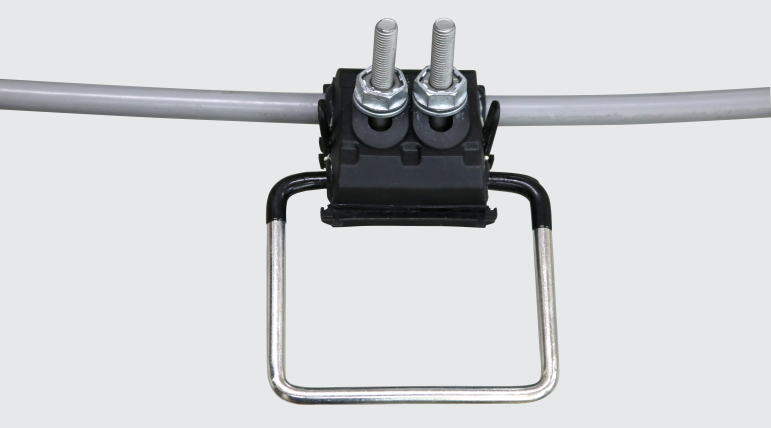

Purpose: Tap of protected network (medium voltage) to shear head switch or transformer using a live line clamp on the stirrup.

Characteristics: Connection by piercing (does not need to strip or rebuild the insulation of the conductor). Suitable for covered aluminum cables. It has a shear head nut to guarantee a perfect application and elastomeric rubbers, making it watertight.

Application: Protected overhead electricity distribution networks (medium voltage)

Material: Polymer body resistant to weathering and UV rays. Stirrup, main contact and tap in tinned copper.

Application tool: 17 mm socket wrench.

*Available on request

Technical Chart

Technical specifications of our products

INTELLI CodeRun Conductor (mm)Stirrup (AWG)Electrical Tension (kV)Thickness of Protective Layer (mm)
CDPRPE-185-1/0-15/2550 - 185215 | 253 a 4View
CDPRPE-185-2-15/2550 - 1851/015 | 253 a 4View
